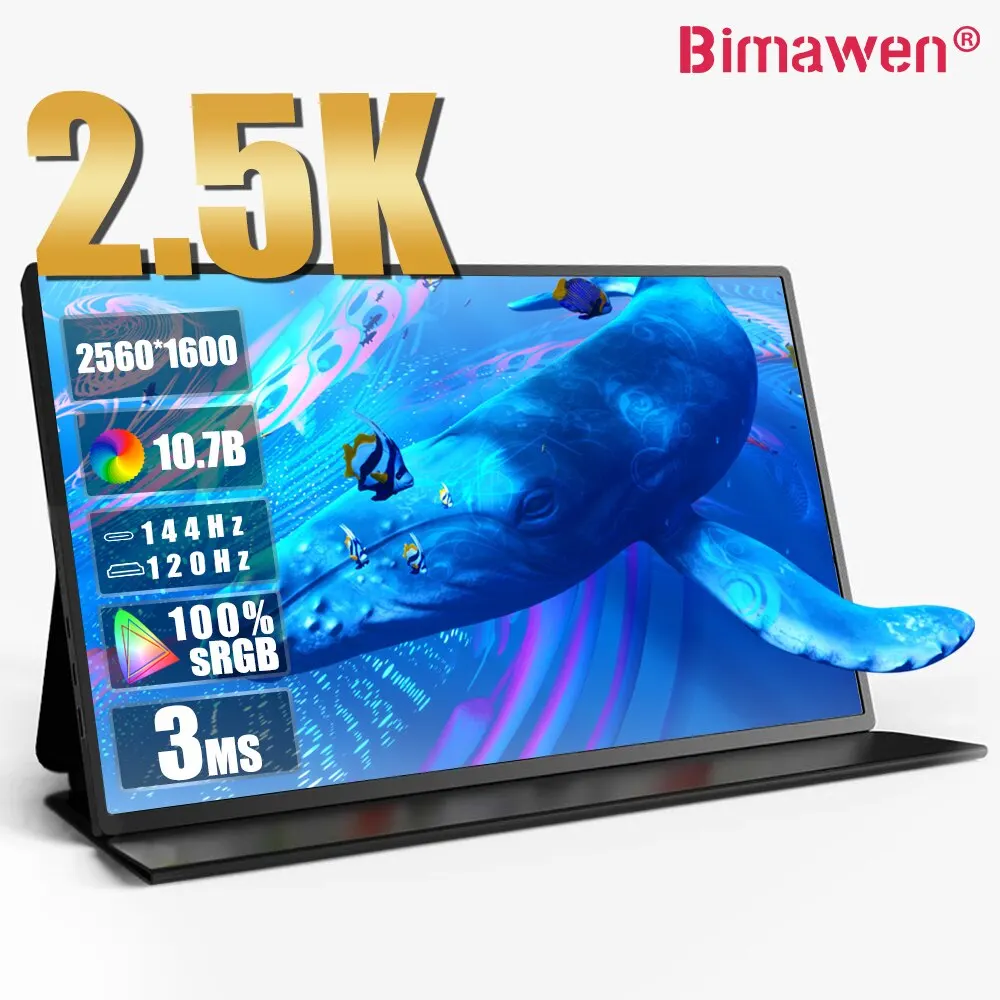

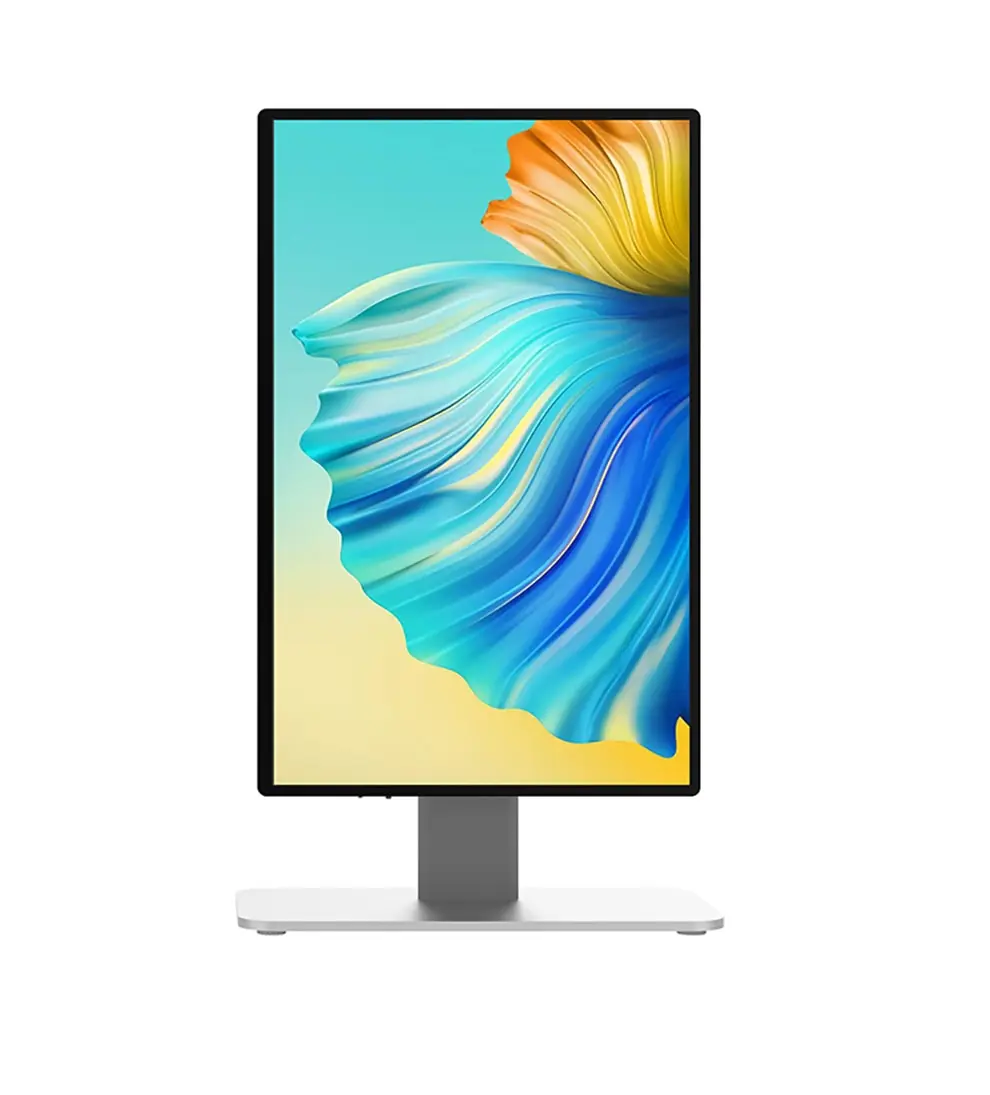

Name: Bimawen 16 Inch 2.5K 144Hz Portable Monitor 2560X1600 100 Adobe SRGB Display Game Screen For Laptop Mac Phone Xbox PS4/5 Switch
Brand: malliversegh.com
SKU: 1005005697347051
Availability: InStock

Product details

with(document)with(body)with(insertBefore(createElement(“script”),firstChild))setAttribute(“exparams”,”userid=&aplus&ali_beacon_id=&ali_apache_id=&ali_apache_track=&ali_apache_tracktmp=&dmtrack_c={}&hn=aeproductsourcesite033003046219%2erg%2dus%2deast%2eus68&asid=AQAAAAAjXUJlGFPDcAAAAACX3k+Dj3BzBw==&sidx=Fzc+HiNdQmUAAAAA0uvd1pHdM88Y5HJM”,id=”beacon-aplus”,src=”//assets.alicdn.com/g/alilog/??aplus_plugin_aefront/index.js,mlog/aplus_v2.js”)

• High Resolution :Enjoy crystal-clear visuals with a resolution of 2560 x 1600, perfect for gaming and streaming.

• Fast Refresh Rate :Experience smooth and seamless gameplay with a refresh rate of 144Hz, eliminating any lag or delay.

• Wide Color Gamut :The monitor features a wide color gamut of 8 bit, ensuring vivid and lifelike colors for an immersive viewing experience.

• AMD FreeSync Pro :Say goodbye to screen tearing and stuttering with AMD FreeSync Pro technology, synchronizing the monitor’s refresh rate with your graphics card.

Features:

【 2.5K QHD portable monitor 】the monitor with 2.5K resolution which is equivalent to 2.5 times the resolution of 1080P, 100%sRGB and HDR technology, brings the ultimate visual experience, displays richer pictures and more complete colors.

【144Hz high refresh rate】The 144H refresh rate,3ms Response Time and FreeSync technology provides ultra-high fluency perfectly and quickly, and there will be no stuttering and flickering when playing games,watching videos and working.

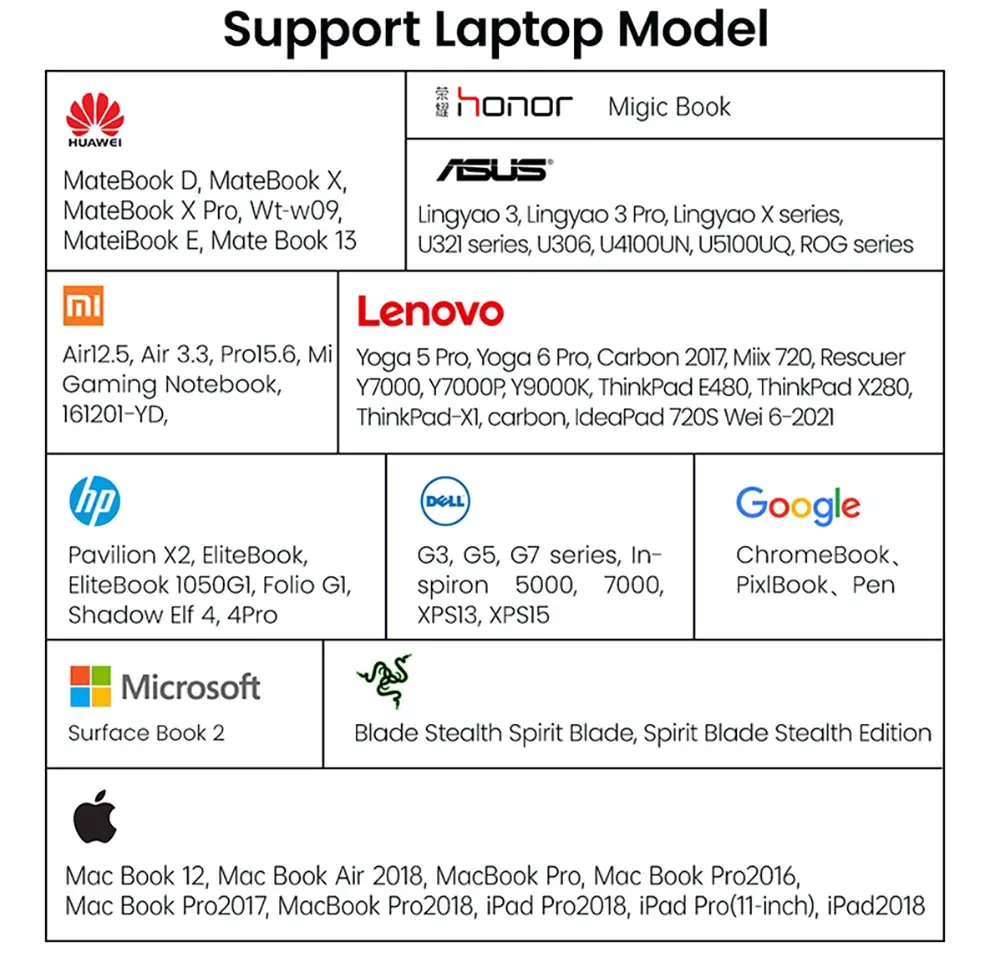

【Universal Compatibility】With a Mini HDMI port, 3.5mm headphone jack, and 2 full-featured USB-C port, the monitor is compatible with most devices, such as PC, Laptop, Mac, Surface, Phone, PS4, PS5, Xbox, NTD Switch, Raspberry Pi, Camera or other laptop/PC, phones, and tablets.

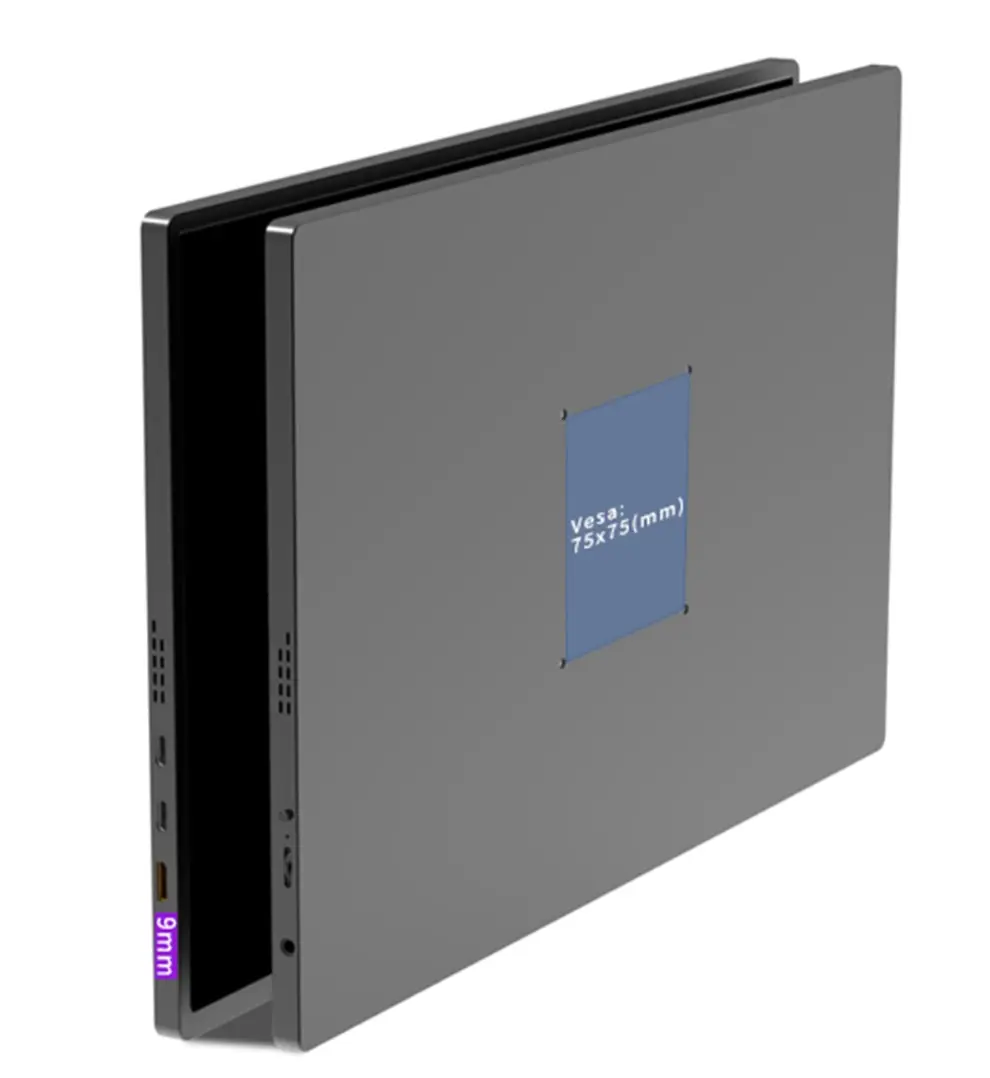

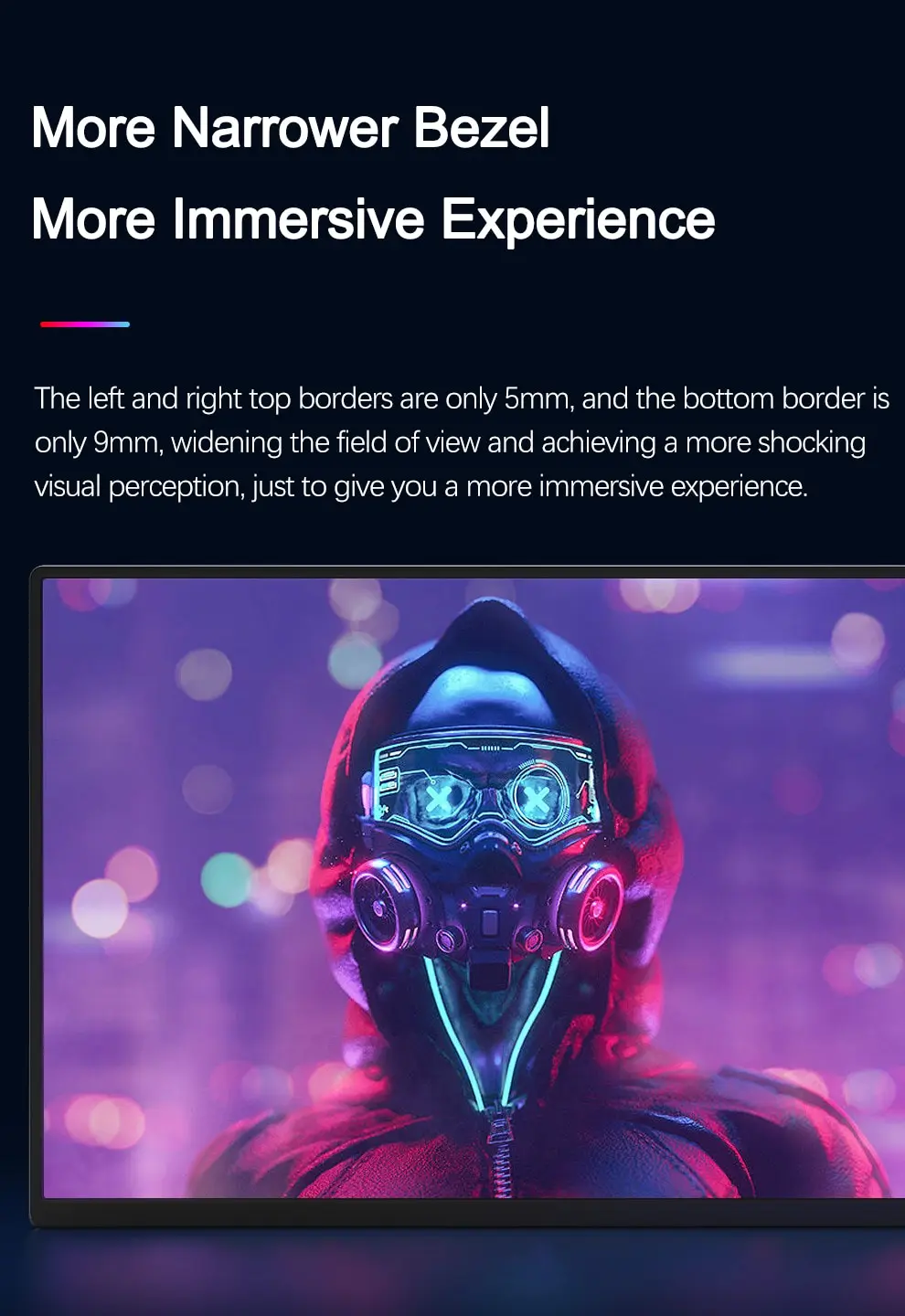

【Ultra thin and light body】The thickness of the monitor is only 9mm and the weight is only 728g. With ultra-narrow bezels, the left and right and top bezels are only 5mm, and the bottom bezel is only 9mm, making it easy to carry and not tiring.

Specifications	Model	160QC
	Screen size	16 inch
	Panel type	IPS
	Resolution	2560*1600(2.5K)
	Aspect ratio	16:10
	Color gamut	100% DCI-P3/100% sRGB
	Displays Colours	1.07 billion
	Color depth	8bit
	Brightness	500cd/siding (Max)
	Contrast	1200:1
	Viewing angle	178°
	Refresh rate	120Hz(HDMI)/144Hz(type-C)
	Response time	3ms
	HDR	support
	Freesync	support

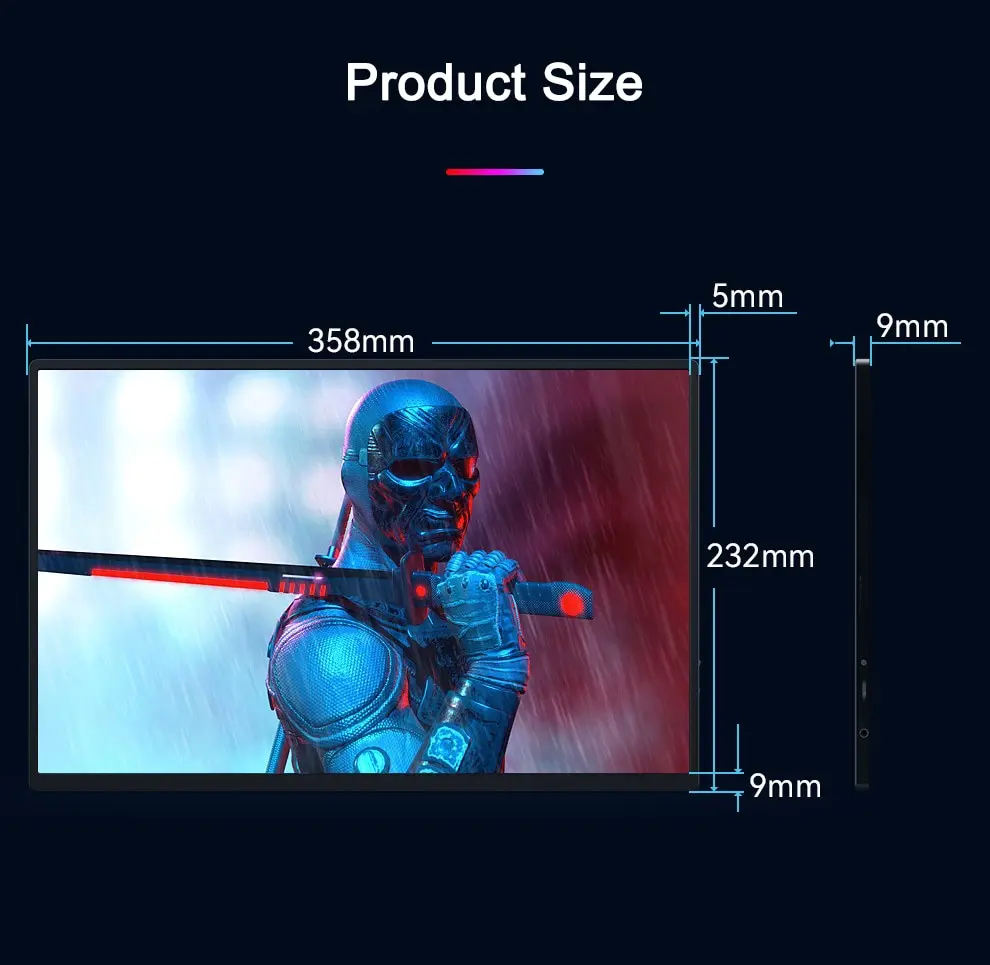

	Appearance size	358mm232mm9mm
	Weight	728g

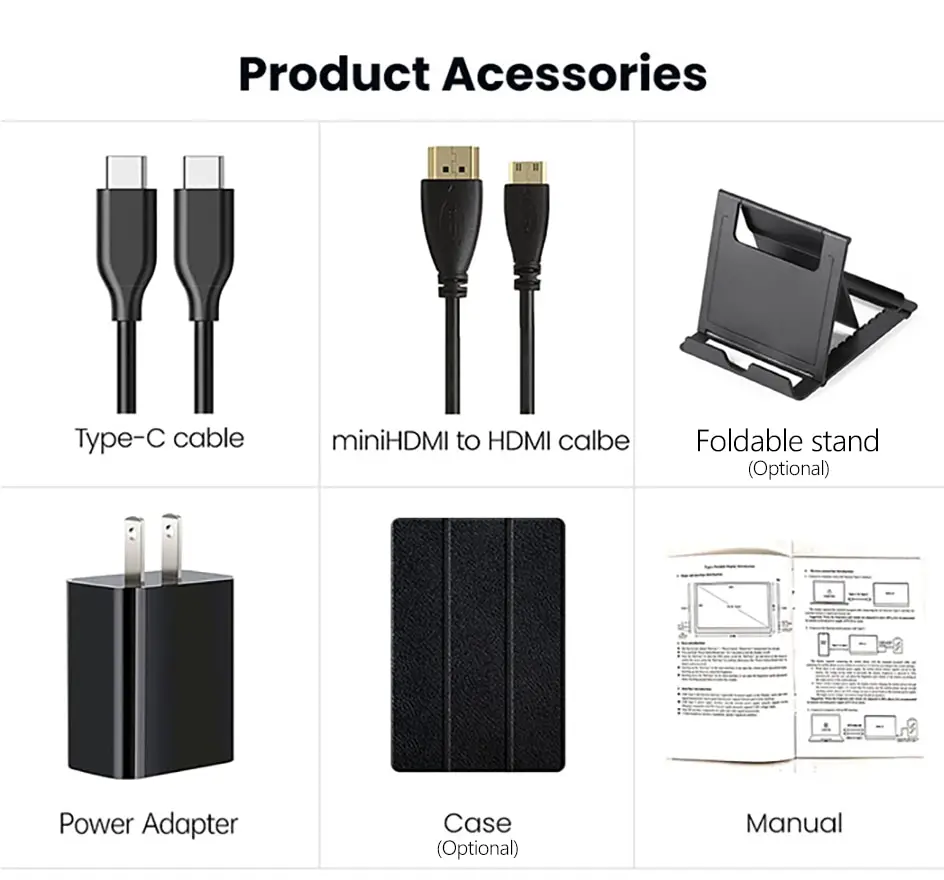

Packing List	Monitor	*1
	HDMI cable	*1
	USB-C to USB-C Cable	*2
	Power Adapter	*1
	Protective case(optional)	*1

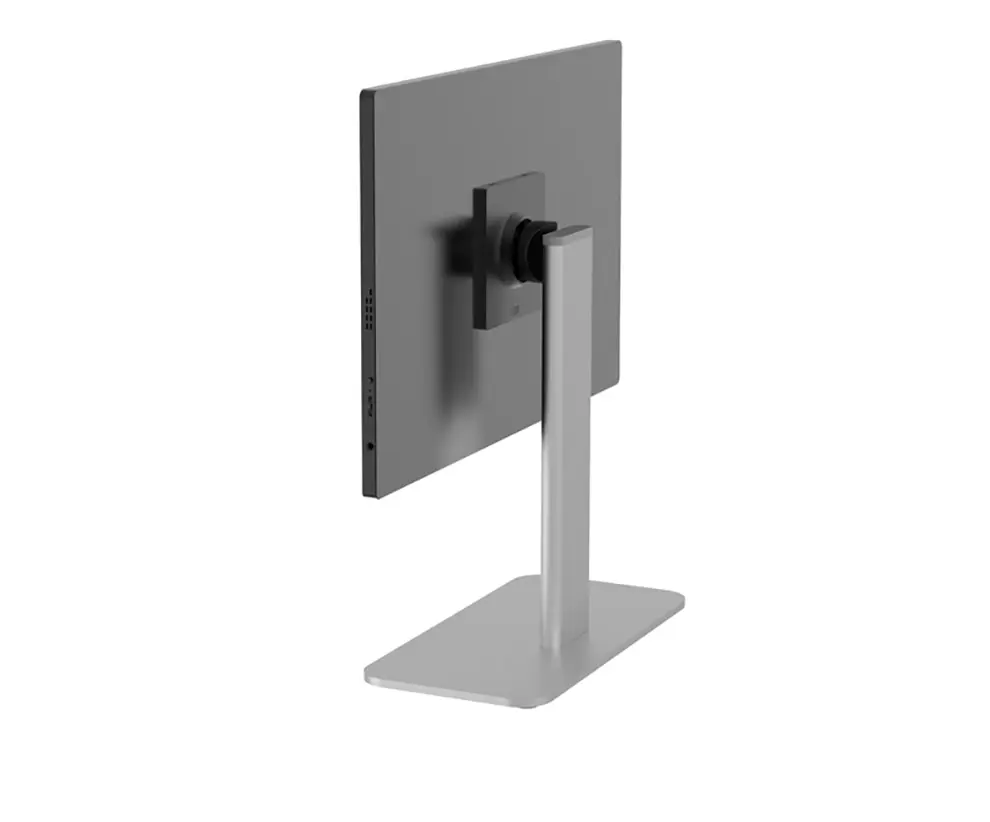

	Foldable stand(optional)	*1
	Manual	*1

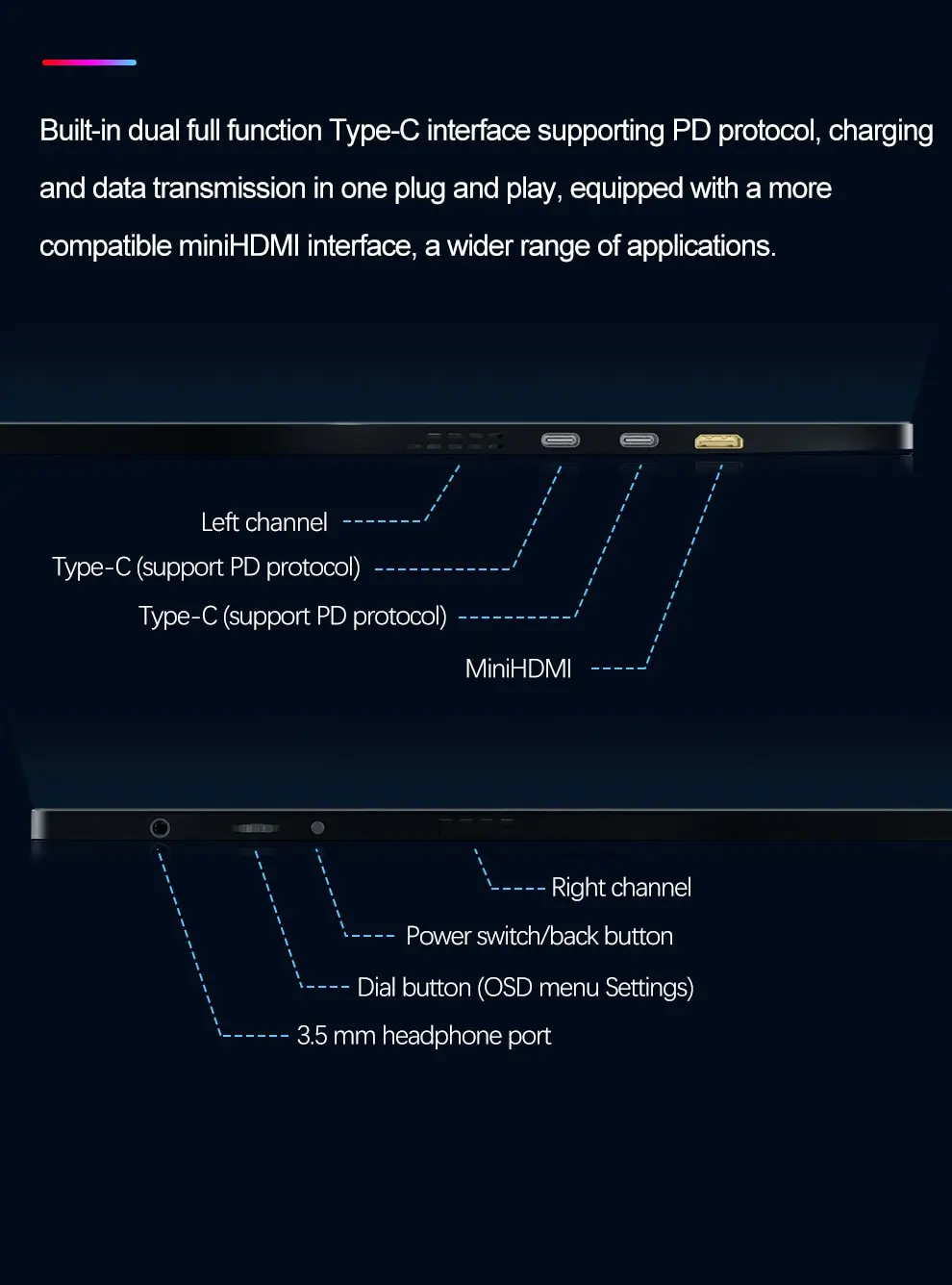

Ports And Buttons	Mini HDMI Port	*1
	Type C port	*2
	3.5mm audio port	*1
	OSD menu button	*1
	Speakers	*2
	Power button	*1

FQA

Q; To connect a computer with a fully functional Type-C connector

A; Supports laptops with Type c to Type c cable for connecting to a monitor, with a full-featured

Type-C connector for extended display or screen casting. Recommendation: When the power supply is insufficient, the brightness and volume cannot be

adjusted to the best, even causing the monitor to display abnormally or black screen, it is

recommended that an external power supply of 5V/3A or above is used.

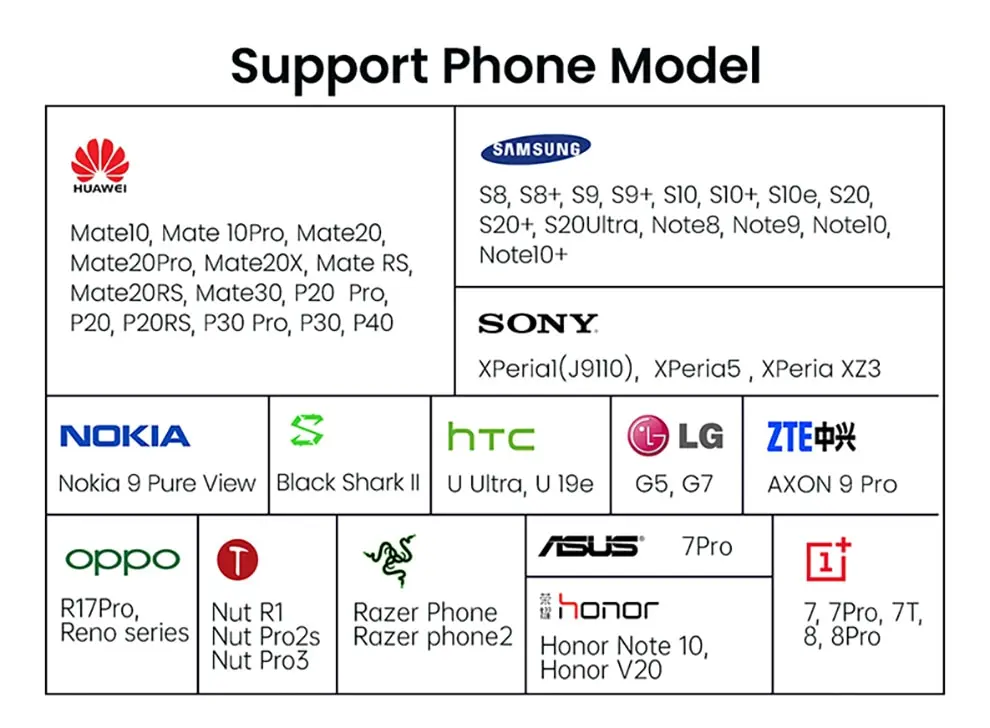

Q; Connecting Type-C all-in-one phones

A; Connects to mobile phones with TV-out function

Support mobile phone with Type c to Type c one cable to connect to the monitor, support mobile

phone mode and computer mode after opening the cast screen.

When there is no external power supply, the phone’s battery powers the monitor. When there is an external power supply, the display charges the phone via the external

power supply in reverse. Recommendation: When the power supply is insufficient, the brightness and volume cannot be

adjusted to the best, even causing the monitor to display abnormally or black screen, it is

recommended that an external power supply of 5V/3A or above is used.

Q; To connect a computer device with an HDMI port

A;The portable monitor with mini HDMI interface is compatible with most HDMI devices. When connecting to a computer with HDMI interface, you need to connect the HDMI to

computer and use a Type c cable to connect to the USB port of the computer to power

monitor (some brands of computers may not have enough power supply from the USB port, so

an external charger of 5V/3A or above is required to power the monitor).

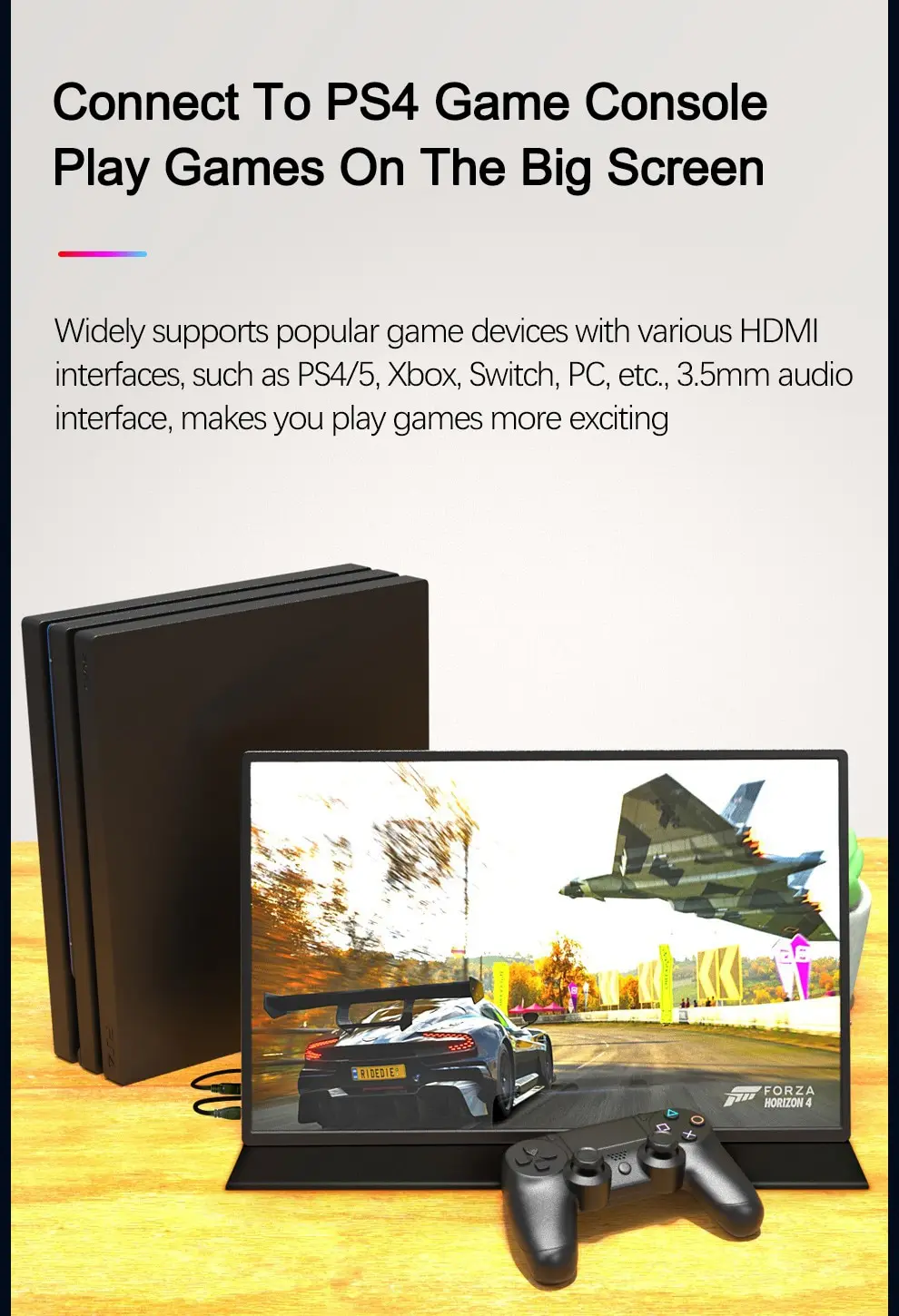

Q; Connections with HDMI gaming device

A; Connecting to Nintendo consoles

When an external power supply is connected, the monitor supports a standard Type-C to Type-C

cable to connect to the Switch console and switch SwitchTV mode. When connecting an external 5V power supply, the external power supply supplies the monitor. Switch needs internal battery to run programs, monitor output is 1080P.(original power supply)

When an external 15VPD protocol power supply is connected, the external power supply powers

both the monitor and the switch. The switch body’s battery is on charge and the display output is

1080p. Note: When connecting an external HDMI cable, be sure to connect the power cable first and

then the HDMI cable to ensure smooth signal transmission.

Display mode setting(For PC/Laptop)

1. Connect the monitor to the power adapter first.

2. Right click on your computer and select screen resolution (Windows 7/8) or display settings

(Window s10) or press the shortcut “windows+P” on your computer/laptop keyboard to enter

the settings.

3. Choose the display mode you need.

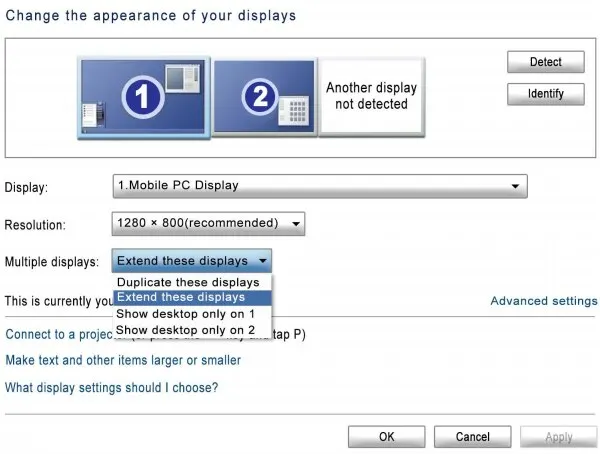

Refer to the picture below:

…

Duplicate Mode: Computer and monitor show the same surface.

…

Extend Display Mode: Computer and monitor can show different surfaces, you can operate

tasks on two screens independently. (eg., Deal with your work on the computer and play a video

on the monitor).

…

Single Display Mode: Display on only one screen on the computer/ or the monitor. [Under

this mode, it
‘

s a normal case that the monitor shows
“

No signal
“

if you choose to display only

on your computer. And the monitor will also show
“

No signal
“

in you next time use if you didn
‘

t change back display mode to Duplicate or Extend Mode when you exit last time.

Note: If you cannot see the additional monitor listed, click Detect.

If it does not work, try restarting your computer and do steps again.

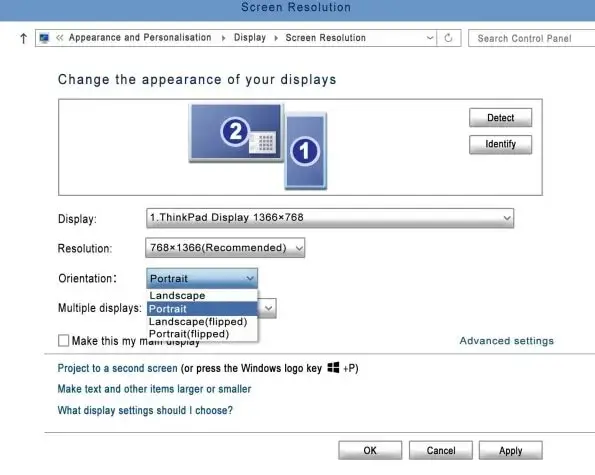

You can also choose the display orientation on this surface.

If you cannot see the option of orientation on your laptop/PC, please check if your laptop/PC

has this function.

Refer to the picture below:

How to start a new task on your monitor under Extend Display Mode?

1. Drag the task which you want to do on the monitor to the RIGHT edge of the computer’s

screen with the mouse. When it skips out of the computer’s screen, the Mouse will show on

monitor. You can deal with the task on your monitor then.

2. Oppositely, if you need to move back to the computer with the Mouse, drag your Mouse

the LEFT edge of the monitor
‘

s screen, it will show on the computer
‘

s screen.

Note: You can only deal with ONE screen
‘

s task with your Mouse at the same time, either

computer or the monitor.

Operational notes

1.Both Type-C ports can be used as video input or movie input, however, they can’tbe used for the same function at the same time.(eg: if one Type-C port is used for charging, the other Type-C port is used for video input).

2.if the monitor needs to be connected to external power, please plug in the power

first and then connect the video cable. This is important for high quality and smooth

video signal transmission.

3.When no external power supply is connected to the laptop and monitor, the powersaving mode will be automatically turned on and the screen will be darker. Users canadjust the brightness according to their needs, and a low battery can cause themonitor to turn off or display inconsistently.

Item specifics

Matrix color depth	8 bit
Refresh rate sync technology	AMD FreeSync Pro
Screen surface	MATT
Bracket Type	Other
Screen curvature	NONE
High-Dynamic Range	HDR400
Refresh Rate	144Hz
Plug Type	EU plug
Vertical Viewing Angle	178°
Screen Type	LED
Horizontal Viewing Angle	178°
Black and White Response Time	3 ms
Feature	USB Port,Speaker,Gaming
Application	Laptop
Pixel Pitch	0.249mm
Response Time	2ms
Panel Type	IPS
Products Status	STOCK
Contrast Ratio	1200:1
Interface Type	HDMI-Compatible
Brightness	500cd/m
Display Ratio	16:10
Display Size	16inch
Resolution	2560 x 1600
Brand Name	Bimawen
Origin	Mainland China
Certification	CE,FCC,RoHS,KC

Shipping & Payment

Shipping and delivery

We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

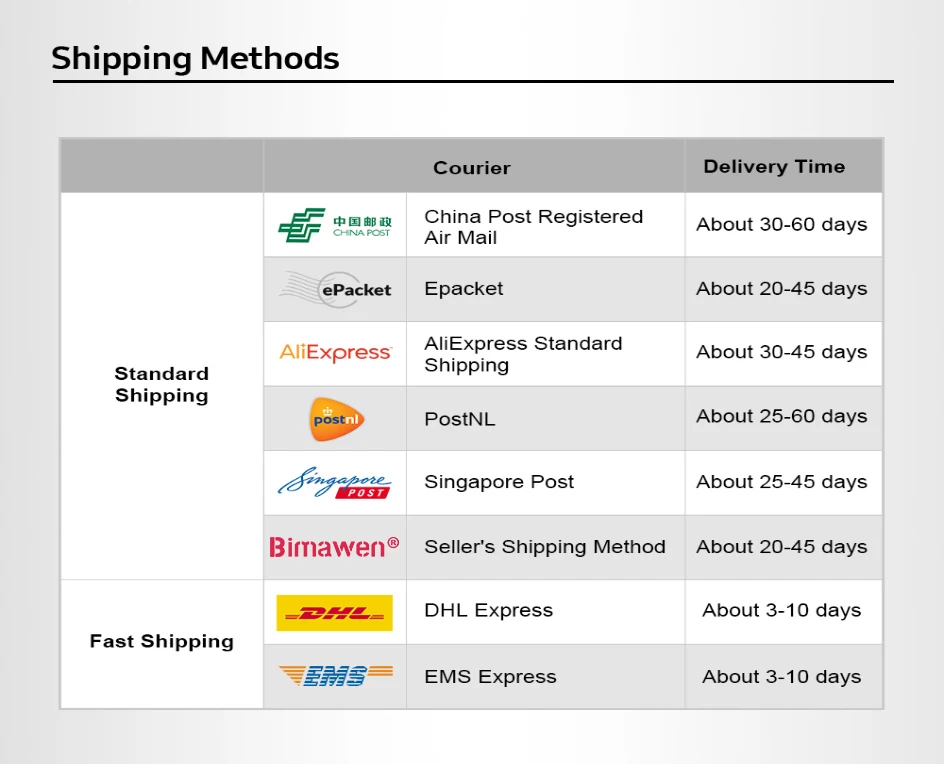

How do you ship packages?
