1200M~2100Mbps Dual Band Wireless WiFi Repeater 2.4G&5.8G Long Range WiFi Amplifier Signal Booster with 4 Antennas wifi router
Q&A
Q1. What is the wifi speed of this repeater ?
A1. The Speed is depend on the main router. If your router is dual band 2.4G & 5G wifi signal, this moderepeater can received 2.4G or 5.8G wifi signal, and give 2.4G or 5.8G wifi speed.
Q2. Can't connect to internet after finished setting ?
A2.First of all, you need to see if your repeater is placed on your phone where you can search for two to three stable wifi signals of your router .The second is whether you set up after connecting to the repeater network .The last is to check if your repeater is working normally, normally there are two lights on . If it doesn’t work, you can choose to reset and reset it from another place
Q3. How to reset the repeater ?
A3. Please long press the reset button for 10 seconds under powered.
Note :The difference between the products in the two options show you as below !
Specification:
Brand: COMFAST
Model: CF-AC2100
Colour: White
Operating mode ：Repeater / Router / AP
Chipset:MT7621A+MT7603E+MT7615N , 128MB DDR2 / 16MB FLASH
Antenna: 4*3dBi high-gain Dual band Omnidirectional antenna
Wireless Standard：IEEE802.11a/b/g/n/ac standard
RF Parameters:Transmit Power:80mW(19dBm)
Acceptance Sensitivity: -96dBm
Working Frequency: 2.412-2.472GHz : 5. 180-5.825GHz
Transmission Rate:2.4GHz : 300Mbps 5.8GHz: 1733Mbps
Physical interface : 1*10/100/1000Mbps WAN/LAN RJ45 Ethernet port ；
Button：1*WPS/RESET button , 1*Power switch ，1*LED switch ；
Power :100-240V,56/60Hz
Channel bandwidth ：20/40/80 MHz Auto
Safety features：WPA-PSK/WPA2-PSK WPA/WPA2
Product Size: 160*91*108mm
Case:ABS Material + plastic shell
Working Environment:
Working Temperature: -10'C~55″C
Storage Temperature: -40″C~70'C
Working Humidity : 10%~90%RH No-condensing
Storage Humidity : 5%~90%RH No-condensing
Feature:
1.CF-AC2100 2100Mbps Wireless extender 2.4Ghz & 5.8Ghz with 4*2dBi antennas signal through the wall stably wifi repeater;
2.CF-AC2100 is equipped with 4 omnidirectional dual frequency high gain 180 degree rotating antennas,which make the device with strong wifi signal receiving and transmitting ability . No fear of walls blocking , extending the signal cover every corner of your house;
3.Covering no dead-ends for large and multiple rooms area;
4.Enjoy high speed wifi ,wonderful partner of your gigabit router ; High speed wifi is a common and basic needs,Currently most of family use fiber broadband and gigabit dual band router.For use with COMFAST gigabit dual band repeater,you'll have more smooth network experience;
5.You can find the best placement of the WiFi repeater accoding to the change of the signal indicator;
. 3 lights bright : Strong signal
. 2 lights bright : General
. 1 light bright : Weak signal
Note:If the signal is weak,maybe the device is too far or too close to the mian router,please adjust the position according to the signal indicator;
Note:About the signal,The repeater should be placed between the router and the distance to be transmitted, and it must be ensured that the repeater can receive the full signal before it can relay the signal well.
Package included :
With retail box
1x Dual Band Wireless AC2100 Range Extender
1x Quick Installation Guide
1x RJ-45 Ethernet Cable

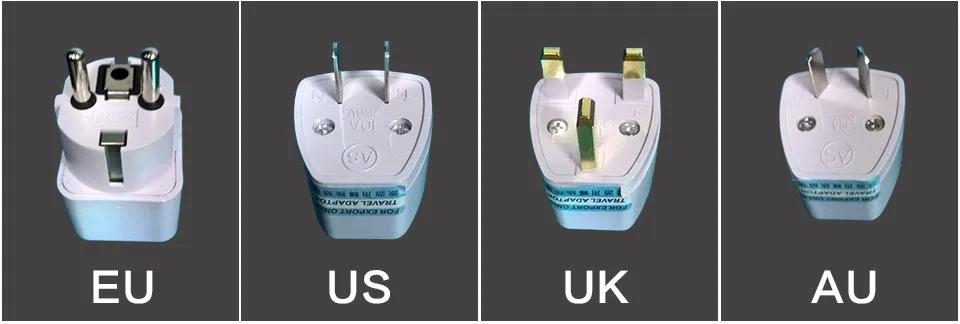

Note:This repeater our company have EU&US two plugversions, if you need other type ofplug,you can leave a message to us,Please take reference as below show ,then we will send a free plug to you,Otherwise,we will send the correspond for you that according to your country,many thanks !
CF-WR754AC V2 Specification As Below
1.Type: AC1200 WiFi Repeater wifi router
2.Chip: MT7628DAN+MT7613BEN , 64MB DDR2 / 8MB FLASH
3.Frequency Range: 2.412GHz – 2.4835GHz, 5.15 GHz – 5.825 GHz
4.With external 4*2dBi antennas
5.Support IEEE802.11ac /a /b /g /n Standard
6.Maximum transmit power is 100mW
7.With 1*10/100Mbps WAN RJ45 Port and 1*10/100Mbps LAN RJ45 Port
1.CF-WR754AC V21200Mbps Wireless extender 2.4Ghz & 5.8Ghz with 4*2dBi antennas signal through the wall stably wifi repeater;
2.CF-WR754AC V2 is equipped with 4 omnidirectional dual frequency high gain 180 degree rotating antennas,which make the device with strong wifi signal receiving and transmitting ability . No fear of walls blocking , extending the signal cover every corner of your house;
3.Covering no dead-ends for large and multiple rooms area;
4.Enjoy high speed wifi ,wonderful partner of your gigabit router ; High speed wifi is a common and basic needs,Currently most of family use fiber broadband and gigabit dual band router.For use with COMFAST gigabit dual band repeater,you'll have more smooth network experience;
5.You can find the best placement of the WiFi repeater accoding to the change of the signal indicator;
. 3 lights bright : Strong signal
. 2 lights bright : General
. 1 light bright : Weak signal
Note:If the signal is weak,maybe the device is too far or too close to the mian router,please adjust the position according to the signal indicator;
Note:About the signal,The repeater should be placed between the router and the distance to be transmitted, and it must be ensured that the repeater can receive the full signal before it can relay the signal well.
With retail box
1x Dual Band Wireless AC1200 Range Extender
1x Quick Installation Guide
1x RJ-45 Ethernet Cable
Note:This repeater our company have EU&US two plugversions, if you need other type ofplug,you can leave a message to us,Please take reference as below show ,then we will send a free plug to you,Otherwise,we will send the correspond for you that according to your country,many thanks !
